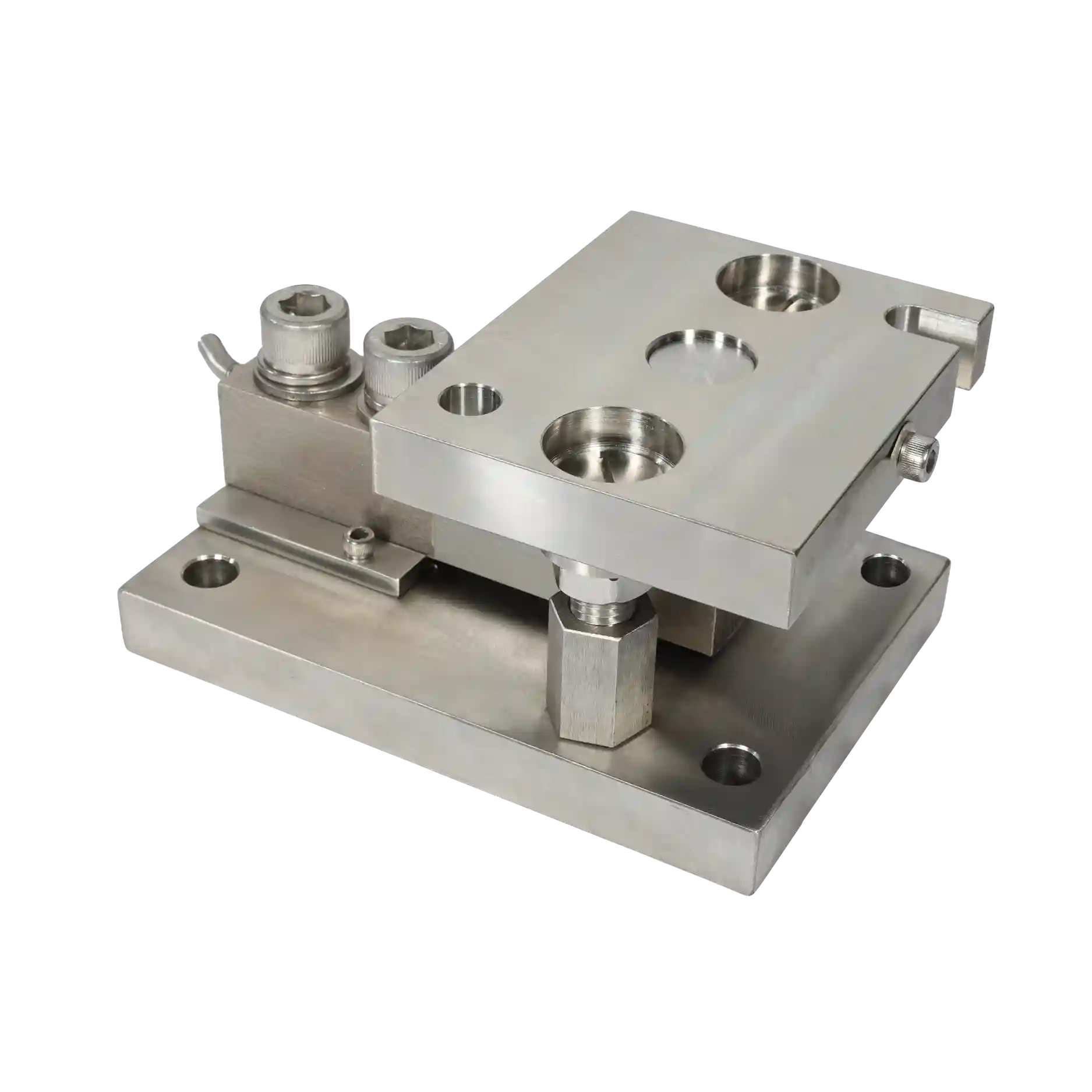

SI,DX TWS Tank weighing system
Request Quote
Sectors Served
Chemical Processing TanksDairy Silos & Storage VatsPharmaceutical BlendersFood Processing Vessels
Product Overview
The Essae Tank Weighing System (SI/DX TWS) is designed for process industries requiring precise level and material measurement in vessels, silos, and tanks. Featuring high-durability load cells, built-in jack bolts for easy installation and maintenance, and lift-off protection for maximum safety. Available with indicators like the graphical SI-850 or green LED DX-451, it can be configured in flame-proof enclosures for hazardous zones.
Procurement & Orders
Technical Specifications
| Model / Identifier | SI/DX TWS |
| Max Capacity | 300 kg to 10,000 kg |
| Readability / Accuracy | Industrial Grade Class III |
| Display Module Type | N/A |
| Platform Dimension | N/A |
| Power Supply Input | N/A |
| Battery Backup Capacity | N/A |
| Structure Material | Alloy Steel / Stainless Steel |
| Operating Temperature | N/A |
| Connectivity Interfaces | N/A |
| Primary Application | N/A |
| Warranty Coverage | N/A |
| Load Cell Type | Shear beam / Compression load cells (3 or 4 units) |
| Indicator | SI-850 LCD or DX-451 Green LED |
| Safety Features | Integrated lift-off protection & Jack bolt |
| Enclosure | IP-65 Standard (Flame-proof option for Zone 1/2) |
Key Product Features
Built-in jack bolt for simplified load cell installation/servicing
Mechanical lift-off protection for seismic/wind stability
High accuracy for chemical and liquid level monitoring
Waterproof junction box with IP-65 protection
Flame-proof configurations for hazardous locations
